EXPLO | RX2-30K SPLITT

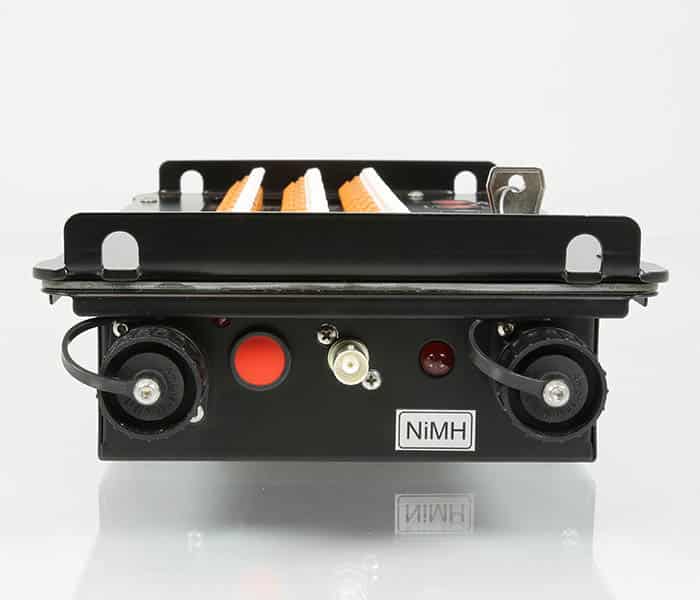

The RX2-30K is a receiver with 30 individually controllable ignition channels. Due to its number of channels and the small size and mass of the housing, it is particularly suitable for smaller outdoor shows and indoor events.
Thanks to bidirectional radio transmission, important status information from the receiver (resistance values on the individual ignition channels, battery status and much more) can be called up directly from the transmitter at any time.
The RX2-30K also enables extremely fast ignitions at 10 ms intervals. This means that there are no limits to the show design.
The integrated split box connections are used to route the existing channels further away from the ignition device. Up to 60 channels of the RX2-30K can be routed to the split boxes using so-called split box cables. The cables can be manufactured in different lengths and the split boxes can be cascaded. This means that several split boxes and cables can be used to bridge considerable distances between the ignition box and the firing position. The receiver itself supplies the ignition energy and ignition signals.
The split box connections are a channel extension of the RX2-30K. By using the split boxes, up to 70 ignition channels can be controlled.
X2: Bidirectional
RX: The device is a receiver.
NiMH: Powered by nickel-metal hydride batteries.
Waterproof: The device is waterproof.
SB: Splittbox connection can be added.
PROPERTIES:
- Resistance measurement on each ignition channel.
- Secure, multi-encrypted radio transmission.
- Waterproof design provides optimum protection against rain.
- Powerful NiMH rechargeable battery.
- Extremely long standby time.
- Confetti mode for triggering individual confetti shooters.
- Integrated split box connections for up to 60 ignition channels.
RENTAL INQUIRY
*Rent price calculation
The rental price is calculated on the basis of the following table. The calculation takes into account the rental period and the corresponding factor. All prices are net plus 19% VAT.
Example : Basic rental MagicFX Stadiumshot III 225€, rental period 13 days
Factor according to table : 8-14 days rental period -> Factor 1.9 = 225€ x 1.9 = 427,50€
Total rent = 427,50€ plus VAT and plus consumables
| Rental period |
Factor |
|---|---|
| 1-3 days | 1.0 |
| 4-7 days | 1.4 |
| 8-14 days | 1.9 |
| 15-21 days | 2.4 |
| 22-28 days | 2.9 |
| 29-35 days | 3.4 |
| 36-42 days | 3.9 |
| From 43 days | On request |
Rent-free rolling days
Depending on the transport region, we grant a certain number of rent-free days, so-called rolling days, for the respective transport routes per order.
Example:
Period: From leaving our camp to returning to the camp = 7 days
Transport region: Austria (according to table) = 5 rolling days
The rental period to be added to the total rental price is calculated as follows:
7 days total period – 5 rolling days = 2 days rental period.
| Transport region | Rolling days |
|---|---|
| Germany | 4 |
| Austria | 5 |
| Belgium | 4 |
| France | 5 |
| Netherlands | 4 |
| Italy | 5 |
| Norway | 5 |
| Poland | 5 |
| Spain | 5 |
| Switzerland | 5 |
| Great Britain | 6 |
| United Arab Emirates | 10 |
| Other countries | On request |
